Phatail Kit

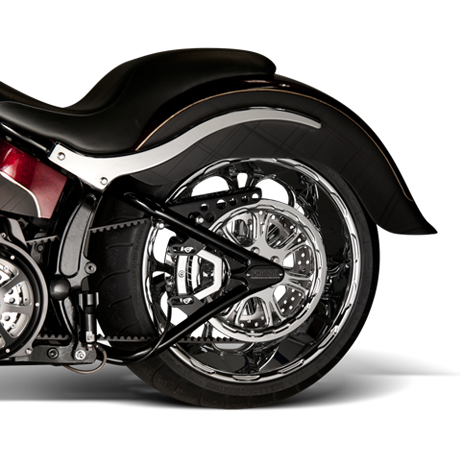

The PM Phatail kit is a BOLT-ON Kit for 1991 and newer Softails that allows our 18" x 8.5" wheel to rest comfortably in the confines of a bone stock HD Softail frame! Includes swingarm, fender, billet struts, all necessary trans parts and detailed instructions. Available in standard brake configuration or with pre-welded tabs for the PM Driveside Brake System. PM Phatail Kits include all of the components listed below. We strongly recommend the conversion be completed by a qualified bike shop. Custom seats can be purchased from Corbin and Bitchin Seat Company. Will not work with Harley Factory Six Speed or Factory Hydraulic clutch slave on 1991-2006 Models.

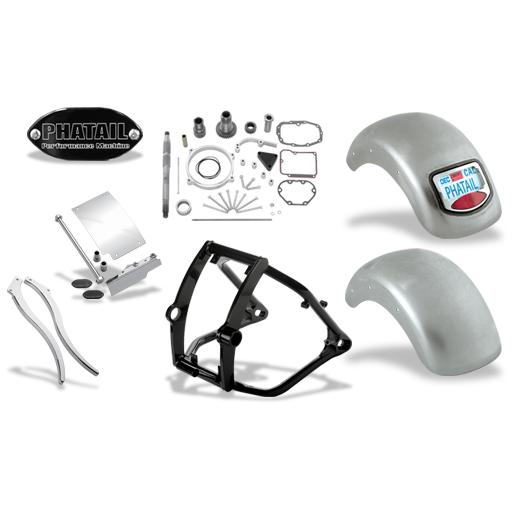

1) Wide swingarm and rear axle assembly
2) One piece formed steel fender and billet aluminum fender struts (optional recessed billet license plate frame)
3) Billet aluminum primary spacers, gaskets and hardware
4) Extended mainshaft, front motor sprocket & final drive gear
5) Starter shaft extension and all hardware
6) All necessary hardware, spacers and gaskets
7) Detailed instruction sheet with photos of each step

2007, 2008-16 Standard or Driveside
2007, 2008-16 Standard with PM Primary
2000-06 5-Speed Softail Standard or Driveside
1991-99 5-Speed Softail Standard or Driveside

Mouseover to zoom, click to enlarge
Pricing

2007 FLST, FXST
Unavailable
0178-2037 | Price Not Available
Out Of Stock Estimated Ship Date : 4/28/2024
